See it your way using sets and set actions to navigate your next dashboard

My blog has moved to jimdehner.com

Thank you for all the support over the past 2 years - I recently updated my blog to make it easier to read, improve the rendering of images and tie back to video presentations that are associated with the content - Check it out at  Jim's new blog  -



See it your way using sets and set actions to navigate your next dashboard -




There are 3 steps –

1.       Create sets on the dimensions you want to vary
2.       Use “Value Pickers” to visually change the set values
3.       Create the detail worksheet for your viz – here a map
4.       Add Set Actions to the dashboard

The example will use 3 dimensions – Market Segment, Product Subcategory and Region from the Superstore data set


Step 1 -Create the sets

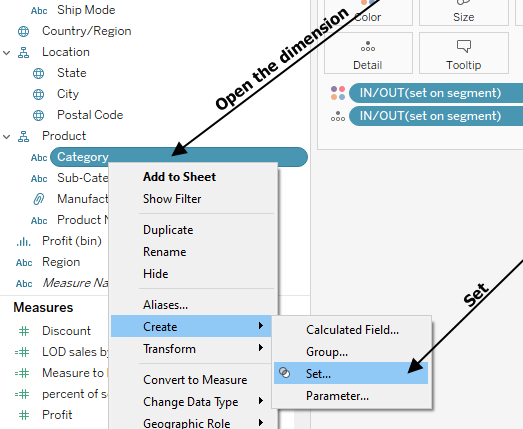

For each dimension just open the pill and select Create Set




Then select any value to start - we will use Set Action to change them later






Step 2 Create visual value picker for each dimension

A Value Pick can be a simple as a worksheet that list the dimension values – you can use any shape I just chose Square here

Create a worksheet for each dimension and set combination

Add the Dimension to the Row or column shelf (based on how you want it to look on the dashboard later)





Repeat for each dimension


Step 3 – Create the map used in the viz

Drag the map to the canvas and add the 3 sets to the filter shelf

– setting each set to “IN”  will only display the dimension values that have been selected to be in the set
– applying all 3 will limit the view to the combination of values in the separate sets.





Step 4 Build the dashboard

Drag the map and the value pickers to the dashboard canvas. You may want to use containers to hold the value pickers -





Then for each dimension add a set action –




For each dimension you need a separate Set Action that ties the Value Picker to the Set
You can also decide to how to change the values - "On Selection" or "On Hover"




 the action will change the value of the set based on the user selection from the Value picker


That’s all it takes


A workbook containing the model and “how to instructions can be found on my Tableau Public site at https://public.tableau.com/profile/jim.dehner#!/vizhome/DynamicSetActions/MixSets  Feel free to download it – or any other models on the site –

Enjoy

Jim
